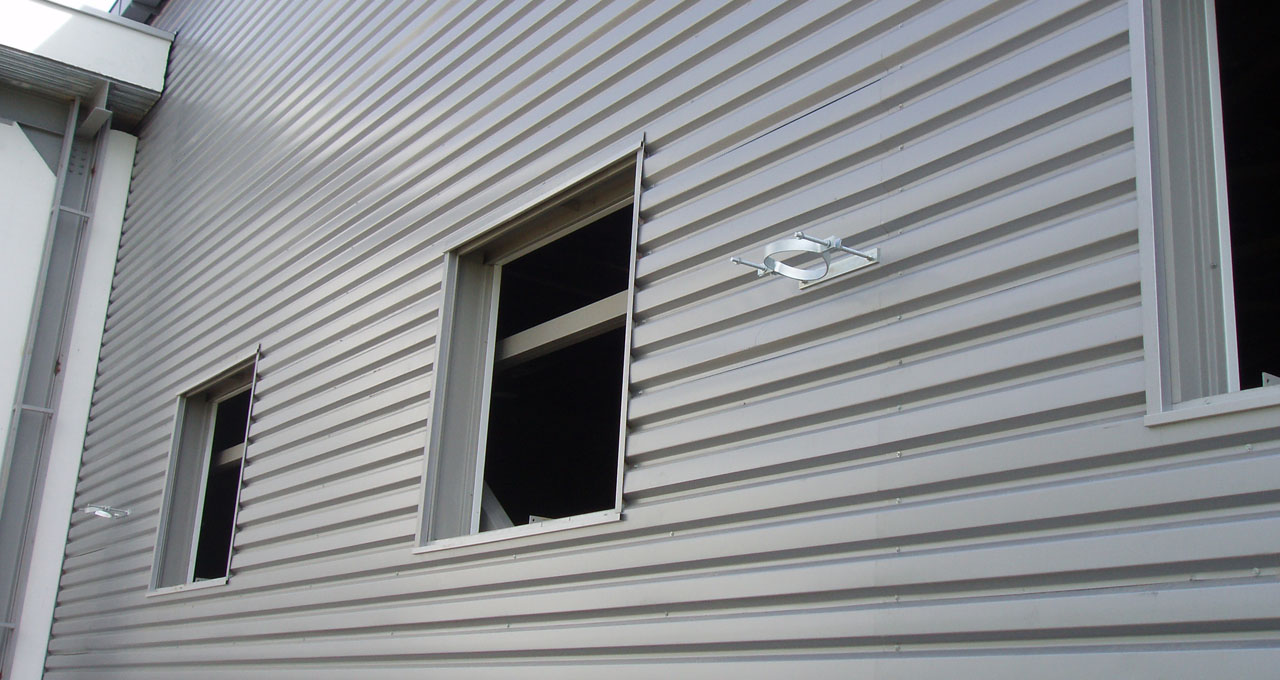

GAMA offers solutions for renovating and new constructions of facades. With different forms
and dimensions of panels, vertical or horizontal cladding is possible. The manufacturing
technique of GAMA also allows tailor-made shapes and dimensions for some panel forms. GAMA
design profile sheets and complementary flashings introduce an international flair to the
steel claddings. They offer diversity of shapes and economical advantage to both large and
small surfaces. Our profiled sheets offer the possibility of minimalistic, tranquil and
clear facade architecture. Colors, shapes and different materials as well as vertical,
horizontal and diagonal installation possibilities provide the designer with a variety of
options. In addition to facades, some of our profiled sheets are also used as roofing and
load-bearing roof materials. Our conventional profiled sheets on the other hand offer new
possibilities to the designer for use in a variety of different buildings and styles.
LCP 25/300 - WALL CLADDING and CEILING
|
Material Data
|
Material Width
(mm)
|
Thickness
(mm)
|
Weight
(kg/m2)
|
| Aluminium |
EN 3003,3005 |
300 |
0.80 – 1.20 |
2.90 – 4.35 |
|
|
400 |
0.80 – 1.20 |
2.72 - 4.08 |
| Steel |
DIN 17162 |
300 |
0.80 – 1.00 |
8.75 - 10.95 |
|
|
400 |
0.80 – 1.00 |
8.20 - 10.25 |
| Titanium Zinc |
EN 50 1201 |
300 |
0.80 – 1.20 |
7.68 - 11.52 |
|
|
400 |
0.80 – 1.20 |
7.20 – 10.80 |
